PA32 Turbo Saratoga

Piston single engine • Low Wing • Retractable gear

Range Visualization

Origin:

· nm at current load

· click map to move · two fingers to move map

Payload vs. Range

Configure weights

Pax weight (lbs)

Default: 190 lbs

Luggage / pax (lbs)

Default: 30 lbs

Occupants

lbs lbs / pax

Select payload

Fuel on board

Extra weight

Range

Available Range / nm

Mission capable. Aircraft can handle the current load with full fuel tanks.

Fuel tradeoff required. You'll need to leave gallons of fuel behind ( gal usable for nm range).

Over max gross weight. Reduce payload by lbs to safely operate this aircraft.

Extra weight is the additional payload available with your selected passengers.

Mission Profile

Endorsements & ratings:

• High-Performance
• Complex

177

KTAS

Cruise Speed

Occupants

875

Max Range

858

lbs

Wet Payload

Estimated Ownership Costs

Create a free account to view or request ownership cost data.

About the PA32 Turbo Saratoga

The Piper PA-32-301T Turbo Saratoga is the refined, retractable-gear evolution of the Cherokee Six. Known for its massive ‘station wagon’ interior, the Saratoga is a premier family cross-country machine. The Turbo variant specifically shines by maintaining its 300 hp Lycoming TIO-540 performance into the flight levels, making mountain crossings and high-altitude efficiency much more attainable than its naturally aspirated siblings.

Key Features for GA Buyers

Club Seating: Often equipped with a conference-style rear seating arrangement, providing unmatched passenger comfort for its class.
Cargo Loading: Features a large rear double door and a forward baggage compartment (between the engine and cockpit), making loading bulky items or balancing the CG exceptionally easy.
Turbocharged Utility: The TIO-540 engine ensures that ‘high/hot’ airports don’t compromise your safety margins or payload capacity.
Stable Platform: Its heavy feel and low-wing design make it an excellent, stable IFR platform for long-distance travel.

Trade-offs

Maintenance Complexity: As a complex, high-performance aircraft with a turbocharger and retractable gear, annual inspections and insurance premiums will be significantly higher than a fixed-gear Cherokee.
Fuel Burn: To see those 170+ knot speeds, expect a fuel flow in the 16-20 GPH range.
Landing Distance: While manageable, the Saratoga is a ‘heavy’ single and requires more attention to speed on short-field approaches compared to a Cessna 206.

Technical Specifications

Dimensions & Weights

Height: 8.5 ft
Length: 28.3 ft
Parking area (ft²): 1538.46 ft²

Max Takeoff Weight: 3,600 lbs
Max Landing Weight: 3,600 lbs
Useful Load: 1,500 lbs
Fuel Capacity: 107 gal

Performance

Cruise Speed: 177 KTAS
Never-Exceed (Vne): 191 KIAS
Max Structural Cruise (Vno): 150 KIAS
Approach Speed: 80 KIAS
Stall, Clean (Vs1): 62 KIAS
Range: 875 NM
Service Ceiling: 20,000 ft
Rate of Climb: 1050 fpm
Takeoff over 50 ft obstacle: 1,710 ft
Landing ground roll: 1,612 ft

Engine

Piston single engine Low Wing

Compare

Explore Piston aircraft

See how the PA32 Turbo Saratoga stacks up against similar aircraft

External Media

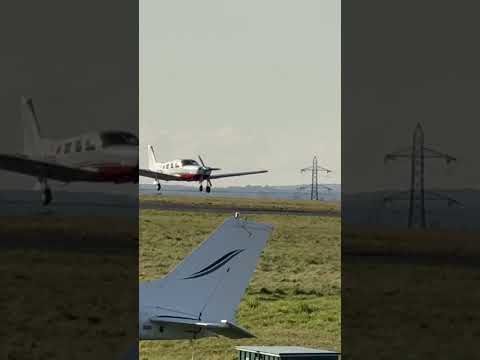

Videos
