About the IAI Astra 1125
Type certificated 1985 Source: FAA Type Certificate Data Sheet
Overview

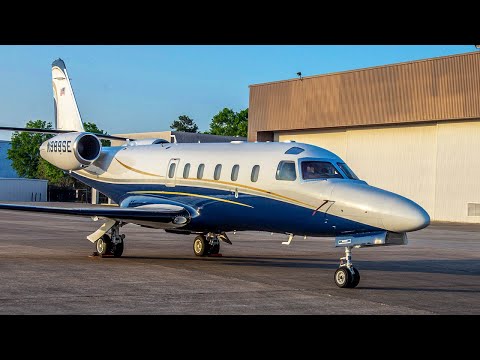

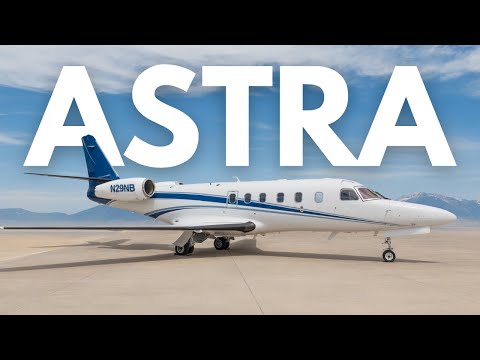

The IAI 1125 Astra is the original, first-generation Astra: the 1985 low-wing midsize jet that Israel Aerospace Industries developed from the Westwind by dropping the wing to a low mount for a taller cabin and cleaner aerodynamics. It cruises near Mach 0.80 (459 KTAS) at up to 45,000 ft on two 3,700 lbf Garrett TFE731-3A turbofans. This is the pre-SPX airplane; the later Astra SPX, with more thrust and winglets, was renamed the Gulfstream G100 in 2002, so shop the two as distinct generations of one lineage.
For a buyer, the original Astra is one of the cheapest ways into a fast, high-flying midsize jet, and the used market prices it accordingly. It has the speed and the transcontinental reach of far pricier airframes, but it also carries the family’s two traits: a narrow cabin and a hunger for runway. The step up in thrust, range, and support network lives in the SPX/G100; the step up in cabin width lives in the later Gulfstream G150.
Key Features for GA Buyers
- Speed for the money: a Mach 0.80 cruise near 459 KTAS puts it among jets that cost far more to acquire.
- High ceiling: a 45,000 ft certified ceiling keeps it above most weather and traffic.
- Stand-up low-wing cabin: moving the wing low under the fuselage gave the Astra more headroom and a taller cabin profile than the mid-wing Westwind it replaced.
Trade-offs
- Runway-hungry: balanced field length runs past 5,000 ft at gross weight, and the original -3A engines make less thrust than the later SPX, so hot-and-high performance needs planning.
- Narrow cabin: the round cross-section stands up but is tight across the shoulders, the trait the later G150 exists to fix.
- Legacy support depth: the pre-Gulfstream original predates the Galaxy Aerospace and Gulfstream support era, so parts and program depth are thinner than on the SPX/G100; verify avionics currency for modern airspace before buying.
See Also
- Gulfstream G100 – the same lineage’s later end: the Astra SPX, re-engined with the 4,250 lbf TFE731-40R and winglets, renamed G100 under Gulfstream. Compare
- Gulfstream G150 – the wider-cabin successor built on the Astra platform, with more range and a stand-up cabin. Compare
- IAI 1124 Westwind – the mid-wing predecessor the Astra was developed from: more cabin volume, slower and shorter-legged. Compare
- Learjet 35/36 – the archetypal TFE731 light-midsize of the same era: similar speed, a tighter cabin, shorter field. Compare
- Cessna Citation II – a slower, easier-field midsize alternative from the same used-market bracket. Compare
Technical Specifications
Dimensions & Weights
- Height
- 18 ft
- Length
- 56 ft
- Parking area (ft²2)
- 3,800 ft²
- Max Takeoff Weight
- Source: FAA Type Certificate Data Sheet 23,500 lbs
- Max Landing Weight
- Source: FAA Type Certificate Data Sheet 20,700 lbs
- Useful Load
- 10,700 lbs
- Fuel Capacity
- Source: FAA Type Certificate Data Sheet 1,297 gal
Performance
- Cruise Speed
- 459 KTAS
- Never-Exceed (VNE)
- Source: FAA Type Certificate Data Sheet 360 KIAS
- Max Structural Cruise (VNO)
- Source: FAA Type Certificate Data Sheet 360 KIAS
- Approach Speed
- 120 KIAS
- Stall, Clean (VS1)
- 106 KIAS
- Range
- Source: third-party reference 2926 NM
- Service Ceiling
- Source: FAA Type Certificate Data Sheet 45,000 ft
- Takeoff over 50 ft obstacle
- 5,350 ft
- Landing over 50 ft obstacle
- 2,450 ft
Engines
Log in to view or request powerplant data.
Sources
Where the figures on this page come from. IAI Astra 1125 specifications are traced to published references; estimated values are flagged inline next to the figure.
